整流二極管模塊是能夠通過二極管的單向?qū)ǖ奶匦詫㈦娖皆诹泓c上下浮動的交流電轉換為單向的直流電(交流變直流)。
特點● 芯片與底板電氣絕緣,2500V交流電壓
● 國際標準封裝
● 焊接結構,優良的溫度特性和功率循環能力
● 最高工作結溫達150℃,正向壓降小
型號 Type |
IT(AV) | VRRM | VTM @IFM | IRRM | lF(RMS) | IFSM | Rjc | Tjm | Viso |
外形 Outline |
|
A | V | V | A | mA | A | Axl00 | ℃/W | ℃ | V(AC) | ||

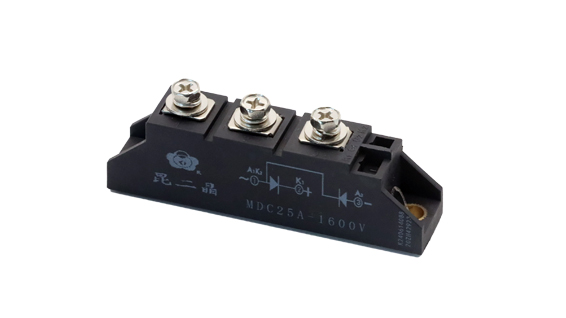

MDC25A16-H20 |
25 | 500-2500 | 1.65 | 80 | 8 | 41 | 0.65 | 1.3 | 1.3 | 2500 | 2/4 |

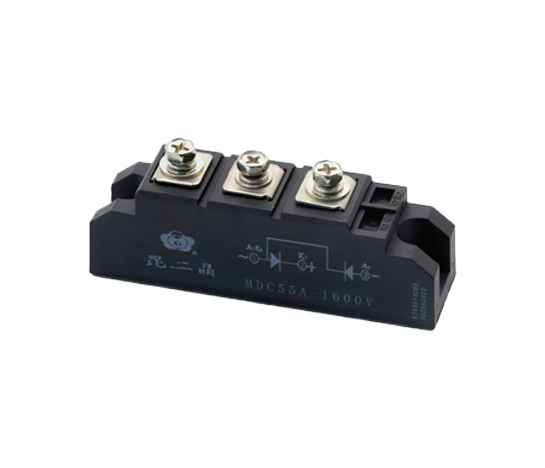

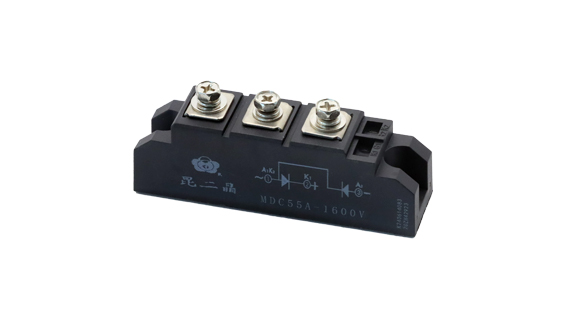

MDC55A16-H25 |
55 | 500-2500 | 1.45 | 170 | 8 | 86 | 1.3 | 0.7 | 0.7 | 2500 | 2/4 |
MDC90A16-H25 |
90 | 500-2500 | 1.33 | 270 | 8 | 141 | 2.3 | 0.47 | 0.47 | 2500 | 2/4 |
MDC110A16-H25 |
110 | 500-2500 | 1.45 | 330 | 8 | 173 | 2.6 | 0.35 | 0.35 | 2500 | 2/4 |
MDC130A16-H34 |
130 | 500-2500 | 1.38 | 410 | 12 | 212 | 3.9 | 0.31 | 0.31 | 2500 | 5/6 |
MDC160A16-H34 |
160 | 500-2500 | 1.56 | 480 | 12 | 251 | 6 | 0.23 | 0.23 | 2500 | 5/6 |
MDC200A16-H34 |
200 | 500-2500 | 1.38 | 600 | 12 | 314 | 8 | 0.21 | 0.21 | 2500 | 5/9 |
MDC250A16-H34 |
250 | 500-2500 | 1.43 | 750 | 20 | 393 | 11 | 0.14 | 0.14 | 2500 | 7/9 |
MDC300A16-H38 | 300 | 500-2500 | 1.35 | 900 | 20 | 471 | 12.5 | 0.130 | 0.1?30 | 2500 | 7/9 |
MDC400A16-Y53 | 400 | 500-2500 | 1.5 | 1050 | 30 | 550 | 15 | 0.11 | 0.11 | 2500 | 8/9 |
MDC500A16-Y53 | 500 | 500-2500 | 1.35 | 1500 | 40 | 785 | 21 | 0?.90 | 0?.90 | 2500 | 10 |
MDC600A16-Y63 | 600 | 500-2500 | 1.65 | 1500 | 40 | 785 | 12 | 0.13 | 0.13 | 2500 | 10 |
MDC800A16-Y60 | 800 | 500-2500 | 1.65 | 1800 | 40 | 942 | 15 | 0.11 | 0.11 | 2500 | 11 |
MDC1000A16-Y66 | 1000 | 500-2500 | 1.7 | 2400 | 40 | 1256 | 18 | 0.08 | 0.08 | 2500 | 12 |
